ป้ายสำหรับประชาสัมพันธ์
KJ-605
5.0
Brands   :
Category   :DTF Printer (Direct-to-film)
5 pcs EPSON I3200 printhead prints more efficiently, with faster speed and better quality. It is a mainstream and more comprehensive T-shirt DTF printer.
Ask for Infomation
KingJet KJ-605 DTF Printer 60 cm With 5 pcs I3200 Heads

5 pcs EPSON I3200 printhead prints more efficiently, with faster speed and better quality. It is a mainstream and more comprehensive T-shirt DTF printer.

Configuration Highlights:
  • Printhead: 5*EPSON I3200-A1
  • Printing Speed: 4pass: 40sqm/h ; 6pass: 30sqm/h ; 8pass: 20sqm/h
  • Max Print Width: 680mm
  • Color: 5 colors (C, M, Y, K, W)
  • RIP Software: maintop, photoprint, CADlink (optional)
KJ-605 DTF printer Advantages



Excellent stability
Independent suction control of the front and rear mesh belt platforms ensures stable and smooth printing process.


Environmental Smoke Purifier
Purify the smoke generated during printing work and improve the printing environment.



Humanized oil drain port
Upgrade the oil drain port to automatically collect waste oil and solve the problem of oil pollution flowing everywhere.


Low failure rate
The trolley anti-collision device prevents the print head from being damaged and extends its service life.

DTF printer 60 cm Main Features



High-precision printing
The machine is upgraded with higher printing accuracy, faster drying and better printing quality.


Intelligent panel
Intelligent digital control screen with multiple operating languages available to meet various working environments.



Automatic printhead cleaning
Achieve regular automatic cleaning of printheads to prevent clogging and reduce manual maintenance time.


White ink circulation system
The continuous circulation of ink prevents clogging of the print head and improves printing efficiency.

KJ-605 DTF printer 60 cm printing Process

Information
หัวพิมพ์
5*EPSON I3200-A1
ความละเอียดการพิมพ์
-
ความกว้างการพิมพ์สูงสุด
680mm
ความกว้างสื่อสูงสุด
730mm
น้ำหนักม้วน
-
แหล่งจ่ายไฟ
-
สภาพแวดล้อมในการทำงาน
Temperature: 18-32℃, humidity: 46-65%
การใช้พลังงาน
AC110V/220V, 50HZ/60HZ, 350W-10KW
ขนาด (กว้าง × ลึก × สูง)
Printer: 2010*795*1600mm,
shaker: 2060*1022*1076mm, 335kg
น้ำหนัก
Printer: 185kg
shaker: 335kg
ซอฟต์แวร์
RIP Software Maintop, photoprint, CADlink (optional)
ประเภท / สีของหมึก
Waterbased pigment ink
ขนาดบรรจุภัณฑ์ของหมึก
-
จำนวนของสีหมึก
5 Colors (C, M, Y, K, W)
ใบรับรอง
Printing Speed
4 Pass 40sqm/h
6 Pass 30sqm/h
8 Pass 20sqm/h

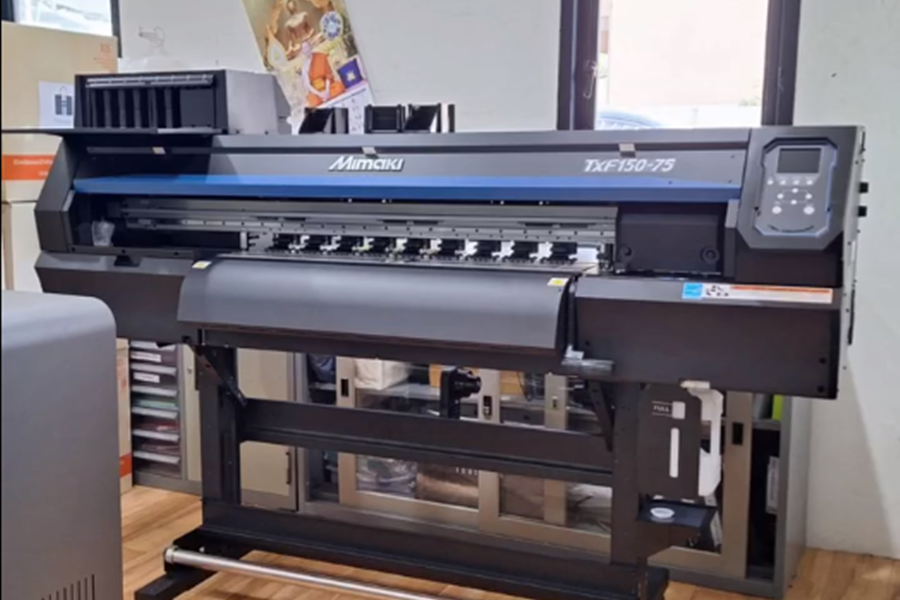

ผลงานการติดตั้ง
