GTX
แบรนด์สินค้า   :

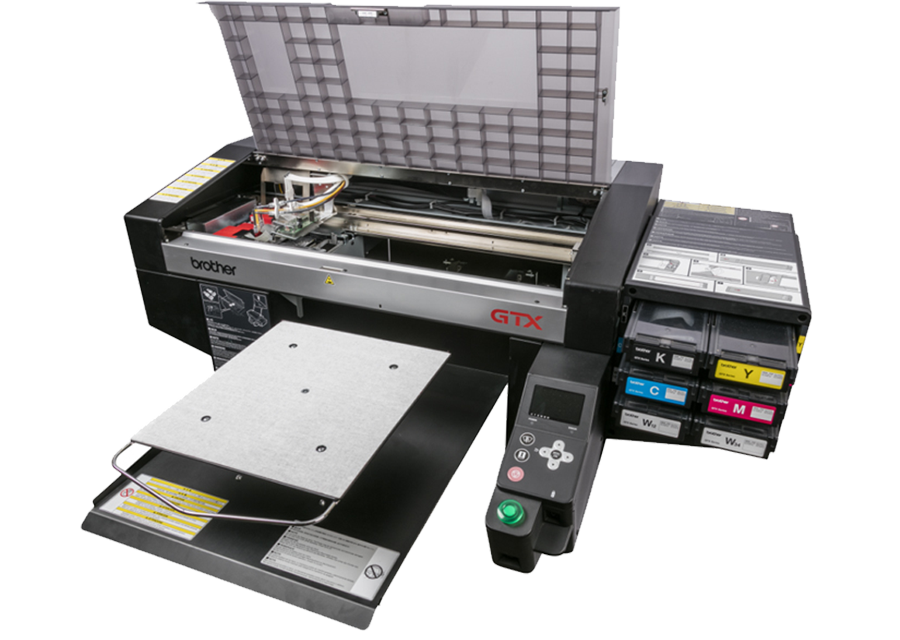

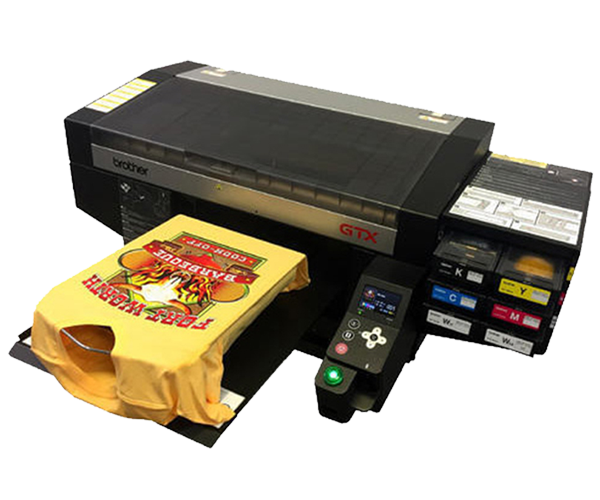

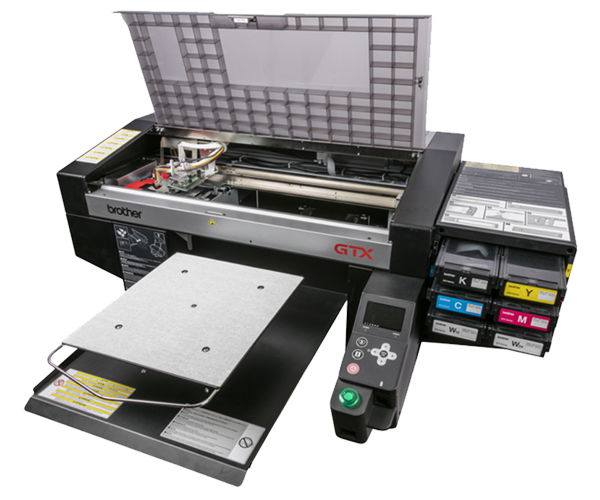

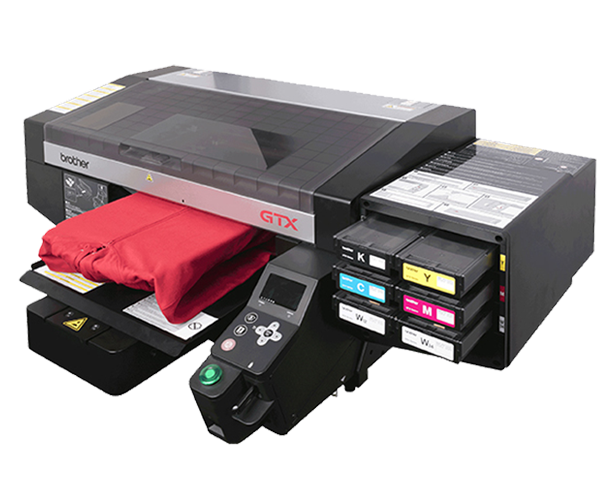

ประเภทสินค้า   :เครื่องพิมพ์ DTG Brother GTX
รับประกัน 1 ปี
ติดตั้งฟรี
สู่ยุคใหม่ของเครื่องพิมพ์เสื้อ Digital Garment Printing (DTG printing) เครื่องพิมพ์เสื้อผ้า GTX ด้วยความเร็วในการพิมพ์ที่รวดเร็วและต่อเนื่อง การบำรุงรักษาที่ลดลงและคุณสมบัติอื่นๆที่น่าทึ่งมากมาย GTX จะทำให้คุณลืมการพิมพ์ DTG แบบเดิมไปเลย

Brother industrial Printheads ด้วยหัวพิมพ์รุ่นใหม่ซึ่งมีความเร็วอย่างน่าอัศจรรย์

Innobella Textile หมึกบราเดอร์ใหม่มีสีที่กว้างและสีสดใสขึ้น ระบบหมึกที่เป็นมิตรกับสิ่งแวดล้อม

Special ink ระบบการล้างหัวพิมพ์ที่เป็นคุณสมบัติใหม่เพื่อลดต้นทุนการบำรุงรักษา

Wide range of พื้นที่พิมพ์ 40x53 ซ.ม., 64x54 ซ.ม.ที่สามารถรองรับงานพิมพ์ที่แตกต่างกัน

Easy-to-use ใช้งานง่ายด้วยการมี
Printing just got faster. Achieve production level print speeds with GTX’s advanced print head technology

Get the precision you've always wanted. Create amazing prints with an enhanced color gamut producing vibrant, high-resolution prints at 1200 x 1200 dpi*

Print bigger and bolder with GTX. Provide your customers with X-large prints up to 16” x 21”

Less maintenance period. Operator friendly design with white ink circulation and an advanced wet capping station

Never limit your prints. The ability to print on more substrates, over zippers, seams and other non-traditional locations due to the large print head-to-substrate gap and adjustable platen height

Environmentally friendly. Environmentally friendly and certified washability water-based Innobella Textile inks
ข้อมูลเครื่อง
Printing Method
Direct Inkjet Garment Printer
Max printing area
16“ x 21“ (40,64cm x 53,54cm)
Platen Height Adjust
-
Machine size L x W x H
55“(W) x 51“(D) x 21“(H) (1400mm x 1290mm x 535mm)
Machine Weight
260lb (approx.118kg)
Ink Type
Water based pigment ink (200 and 500ml pouches available)
Ink Color
CMYKW
Ink volume
-
Number of Print Heads
2
Print Head Type
On demand piezo head
Printed Substrate
-
Environment
Operating conditions: 50°F(10°C)to 95°F(35°C) Humidity: 20-85% RH
Power consumption
0.8A (average) (Reference: 0.3A (during circulation))
Power supply
AC 100V-240V, 50/60Hz
Pre-Treatment
Before printing, apply using a manual or automatic device and dry using a heat-press machine according to manufacturer instruction.
ข้อมูลซอฟต์แวร์
Print Head Resolution
1200 dpi x 1200 dpi
Print Mode
-
Operating system requirements
Windows 7 (32 bit/64 bit), Windows 8.1 (32 bit/64 bit), Windows 10 (32 bit/64 bit), Mac OS X v10.10.x
Print Driver
USB2.0, LAN (10 BASE-T, 100 BASE-TX)
Ink Cure
Heat press machine can be used at 356°F (180°C) and 35 seconds duration.
USB Flash Memory
USB Flash Memory (Under 32GB, FAT32 format)
Recommended PC Applications
CorelDRAW® X6/X7, Adobe® Photoshop CS6/CC, Adobe® Illustrator CS6/CC, Adobe® Photoshop Elements 12/13.
Standard Interfaces
-
